Einbau

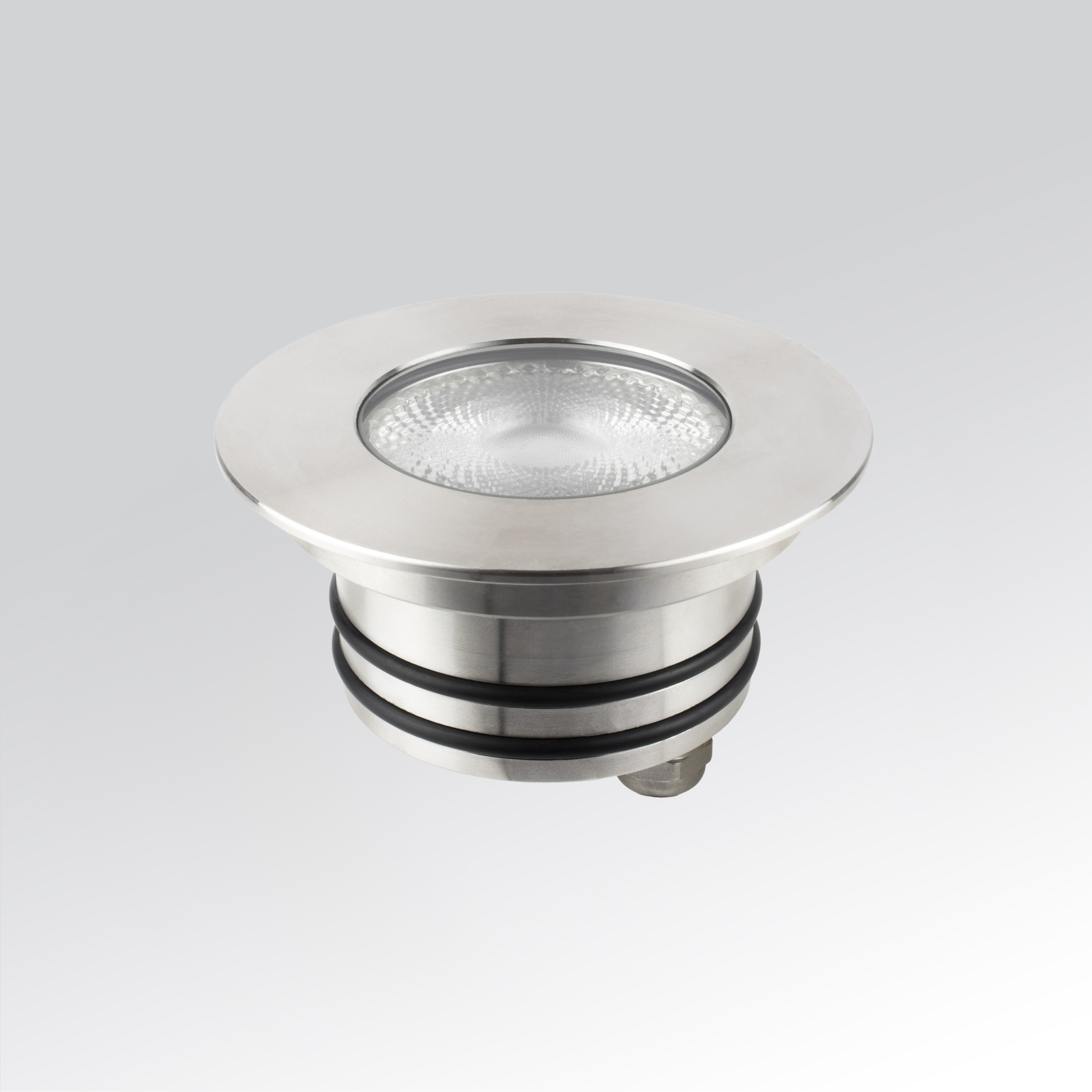

RIVER L

9W
IP68IK08
walk

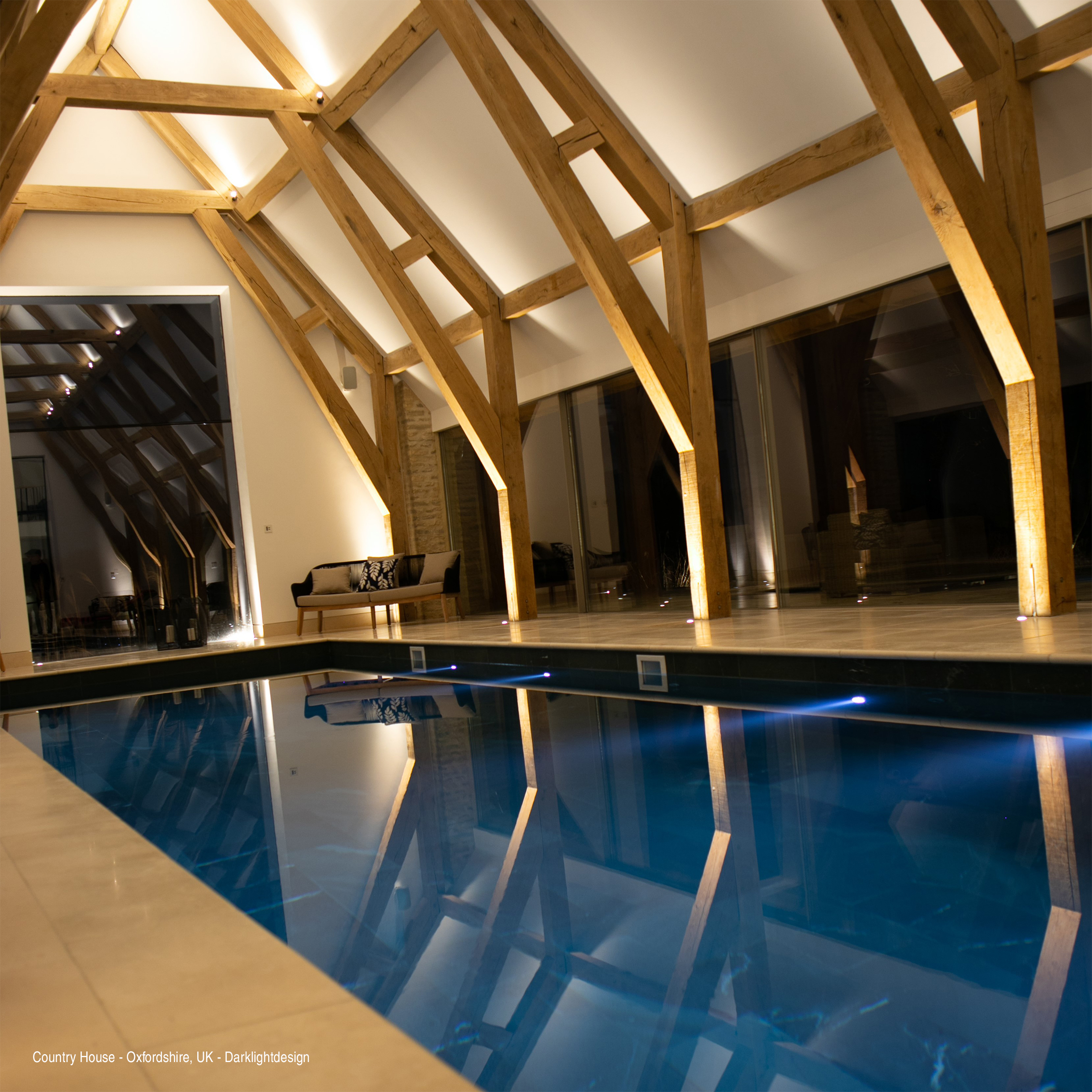

IP68 Bodeneinbauleuchten, ideal für die Beleuchtung von Schwimmbädern und Brunnen, auch in Gegenwart von Salz und Chlor. Dank der Möglichkeit der Installation auch außerhalb des Wassers, sind sie geeignet für die Istallation in stark korrosiven Umgebungen.

Verfassen sie den code
Netzteil Led farbe Optik Feinbearbeitung Dimmer
24Vdc
Amber2200 K2700 K3000 K4000 KRotGrünBlu 18° 24° 36° 60° asym 20°x50° Edelstahl Push
DMX
DALI
1-10
Phase Cut
Kg 1,12
Material:

AISI 316L stainless steel bodyAISI 316L stainless steel trim
Transparent tempered glass and PMMA lens

Verbindung:

24Vdc – Parallel

Verkablung:

Provided with 3m cable

Installation:

Recessed on brickwork with standard or IP68 housing box (not included) Recessed on liner pool with IP68 housing box, flange and compensation trim (not included)

Push, DMX (only with controller), DALI, 1-10V, phase cut (with dimmer) dimmable

Steuergeräte

CENTRALINE

Phase-cut Dimmer

VARIALUCE

HINWEIS: For power supply options, please visit the Power Supplies section of this site.

Notwendige Zubehör für die Installation:
CAE60 - Gehaeuse
CA860 - Gehaeuse
