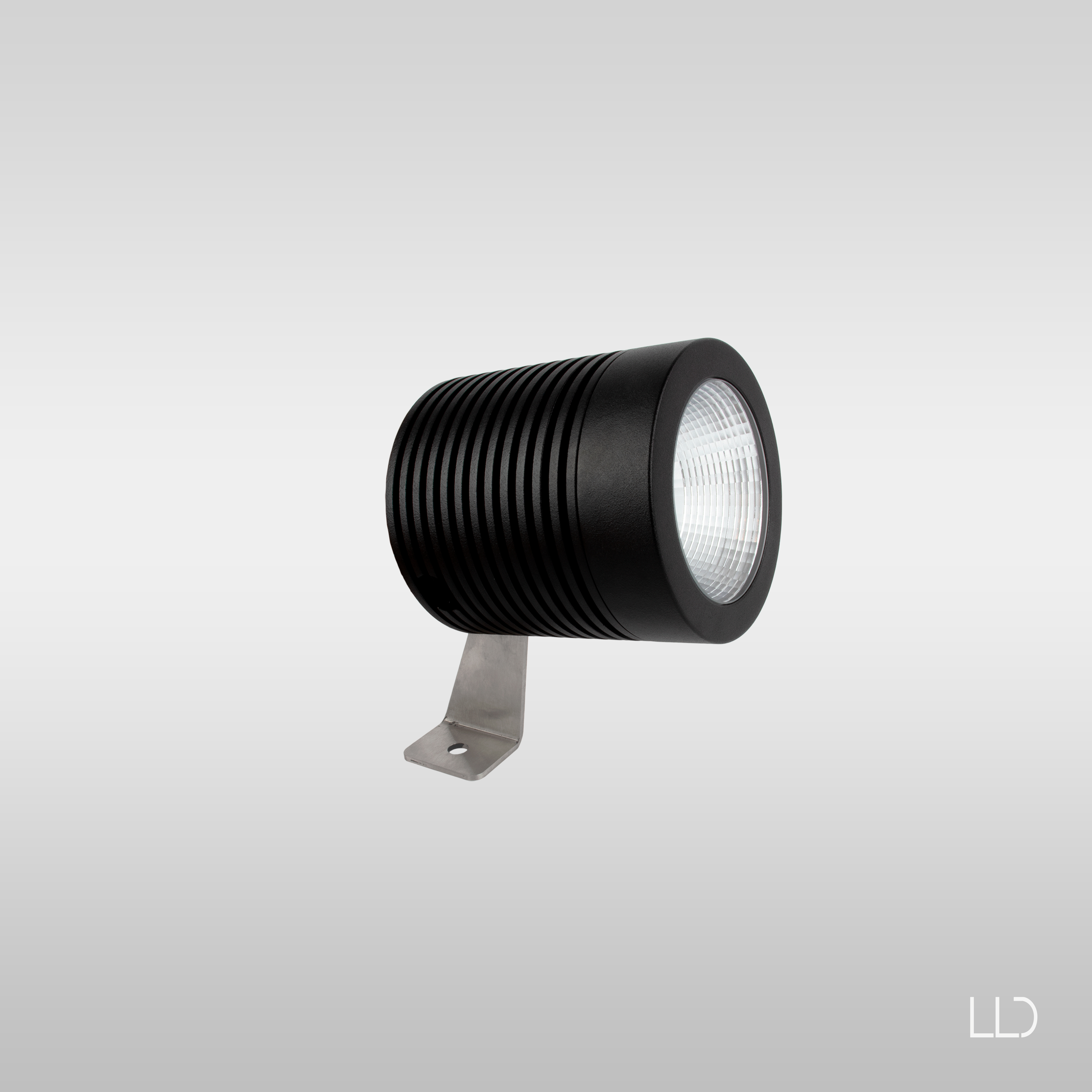

POINT XL | LLD Light

POINT XL

Projectors

POINT XL

18W

19W

IP67IK08

Compose the code

Supply	Led Color	Optics	Optics 2	Cable	Finishing	Body Finishing	Plate Finishing	Trim Finishing	Spacer	Pole Adapter	Arms Lenght	Base	Dimmer	Cri	Filter
24Vdc	2200 K2700 K3000 K4000 KRedGreenBluRGBW	18° 24° 36° 60° RGBW - 24°,36°,60°	RGBW - 24°,36°,60°	WP 50cmWP 5mWP 10mWP 15mNOWP RGBW 50cmNOWP 5mNOWP 10m RGBW-O,W,Y only	TXT whiteTXT greyTXT blackCortenTXT AnthraciteGreenSand									>80	HC

Technical features
Installation
Supply
Accessories
Download

Kg 1,3

Material:

Anticorodal aluminum body
Satin stainless steel bracket
Tempered glass

Connection:

24Vdc - Parallel

Installation:

On the ground, wall or ceiling with bracket (included)
On the ground with stake (not included)
On poles/trees with fixing belt (not included)

Controller

Phase cut dimmer

NOTE: For power options, visit the Power Supplies section of the site.

Accessories needed for installation:

PI002 - Peg
PL004 - Shade
ST015 - Varnished bracket
CIN20 - Mounting strap
HC - The honeycomb filter is an anti-glare filter and must be ordered contextually to the lighting fixture

NOTE:

Documents available for download:

INSTRUCTIONS DATA SHEET LDT PHOTOMETRY IES PHOTOMETRY
